X2O GEN3 12K Winch with Synthetic Rope

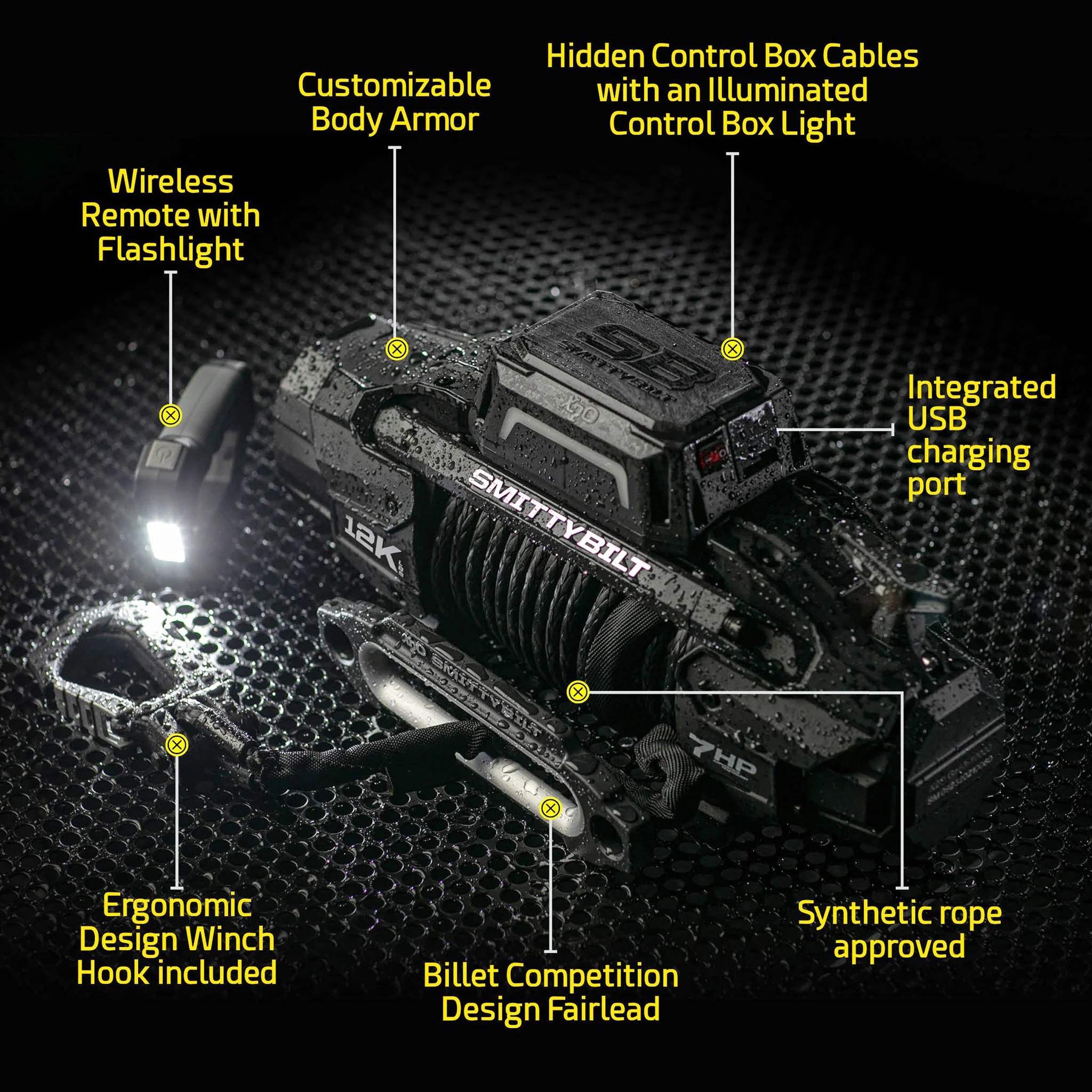

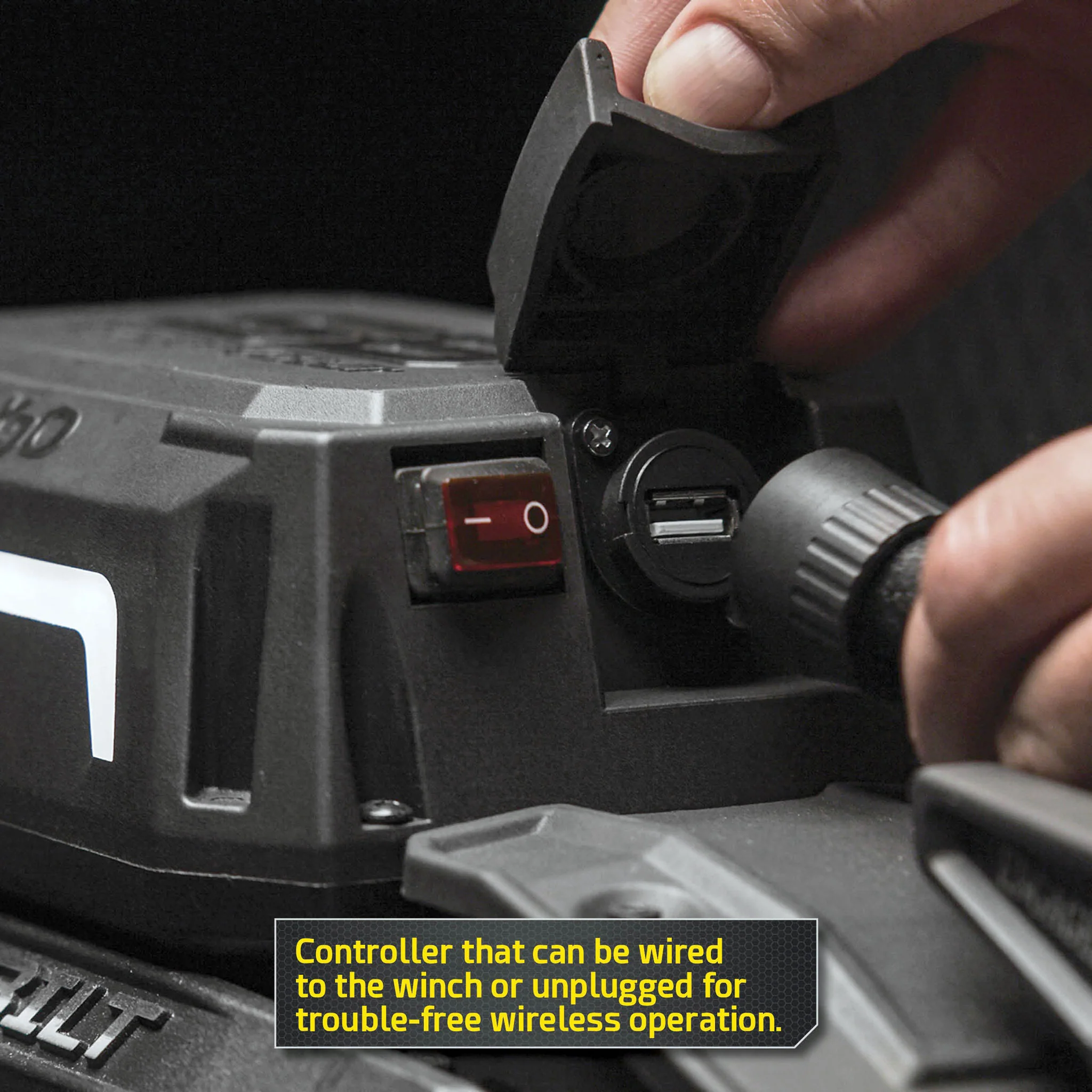

The Smittybilt X2O Gen3 winches are engineered for peak performance and reliable operation, with key enhancements throughout. Powered by a sealed, series-wound 7HP motor and new forged gears, the X2O offers robust durability. Its waterproof 500 AMP control box provides versatile mounting options, while the updated wireless controller with USB connectivity allows both wired and wireless operation. With optimized gear ratios and fast line speeds, the X2O is equipped with a synthetic winch rope to deliver maximum strength and performance.

Features:

• Mounting Bolt Pattern: 10.0" x 4.50"
• Recommended Battery: 650CCA Minimum for Winching

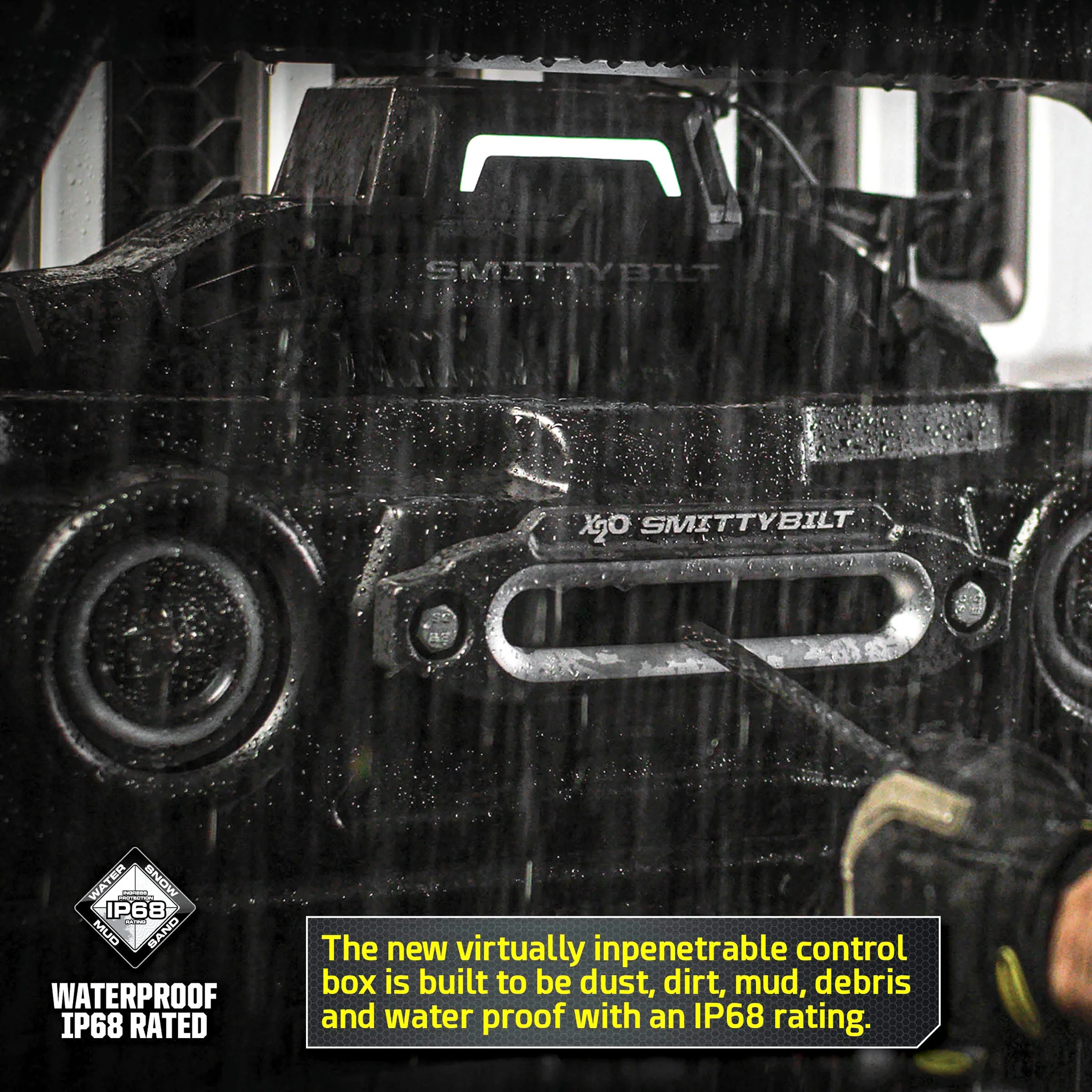

• Waterproofing: IP68 Rating
• 5' battery power cables

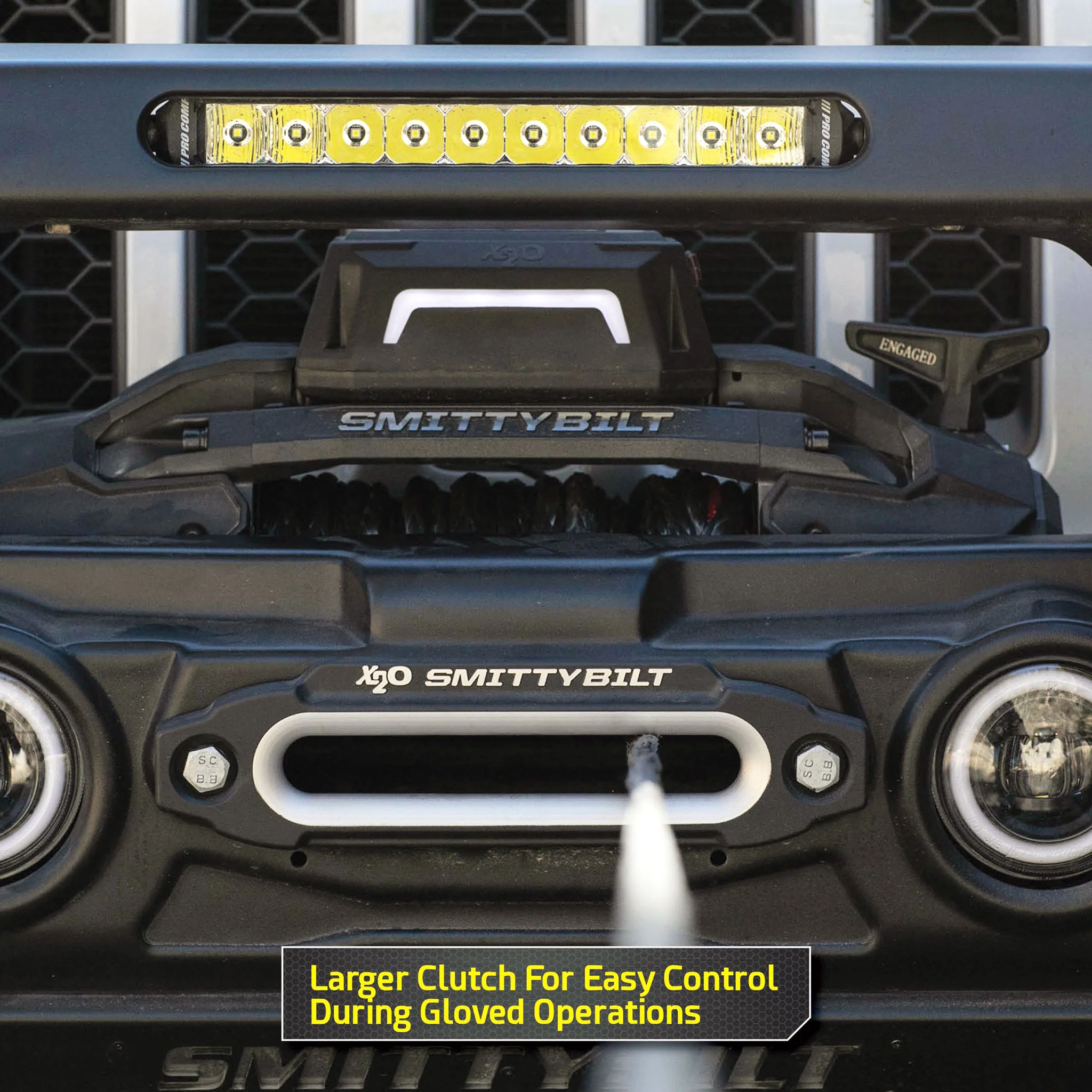

• Sliding ring gear clutch
• Rated Line Pull: 12,000Lbs (5,454kgs) Single Line
• Brake: Automatic Out-Of-Drum
• Gear Ratio: 216:1
• Weight: 76.0Lbs (30.4Kgs)
• Overall Dimensions: (L x W x H) 22.3" x 5.4" x 9.4"
• 3-stage planetary gearbox
• 5-Year Electrical / Limited Lifetime Mechanical Warranty
• 3/8" x 98.5' synthetic rope

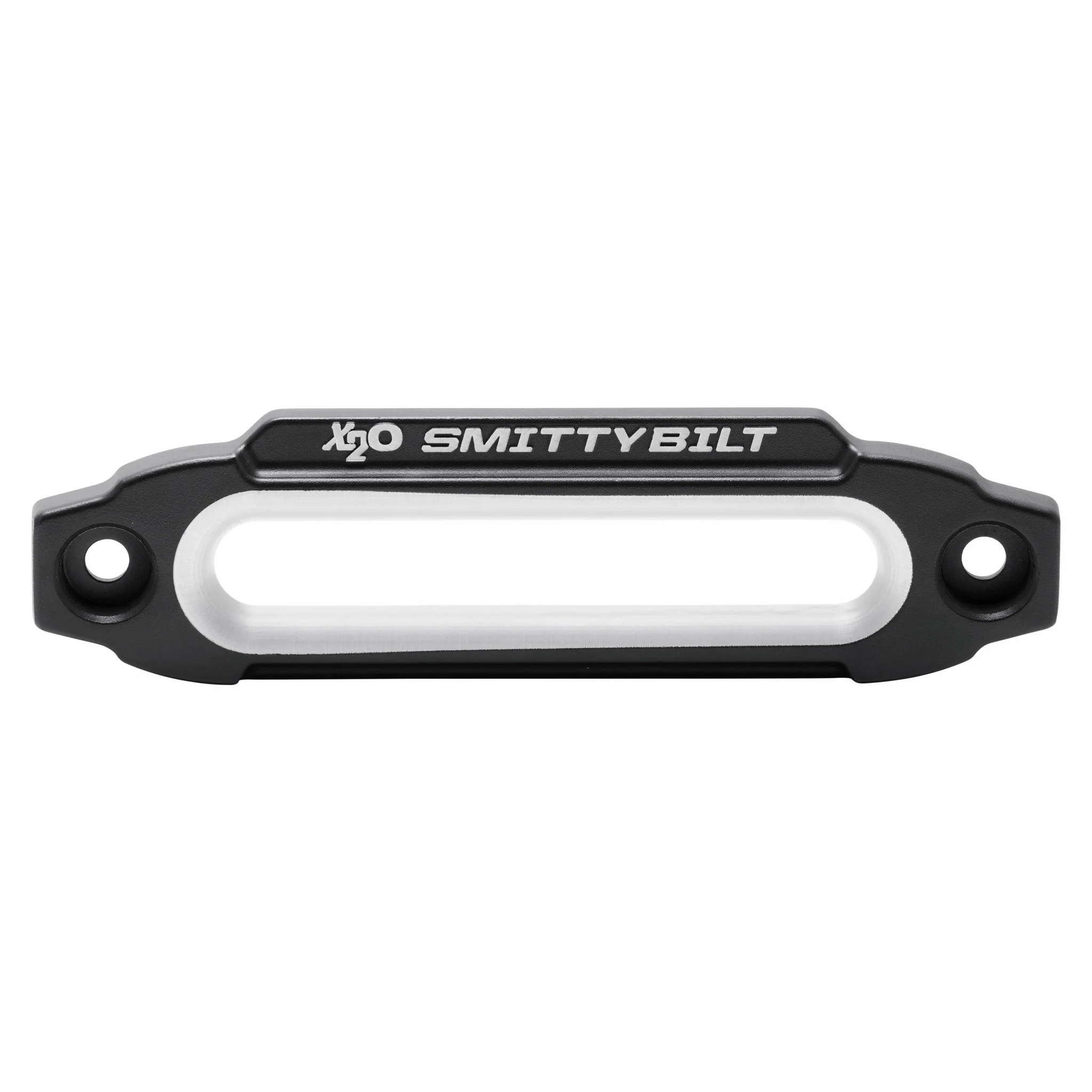

• Fairlead: Hawse

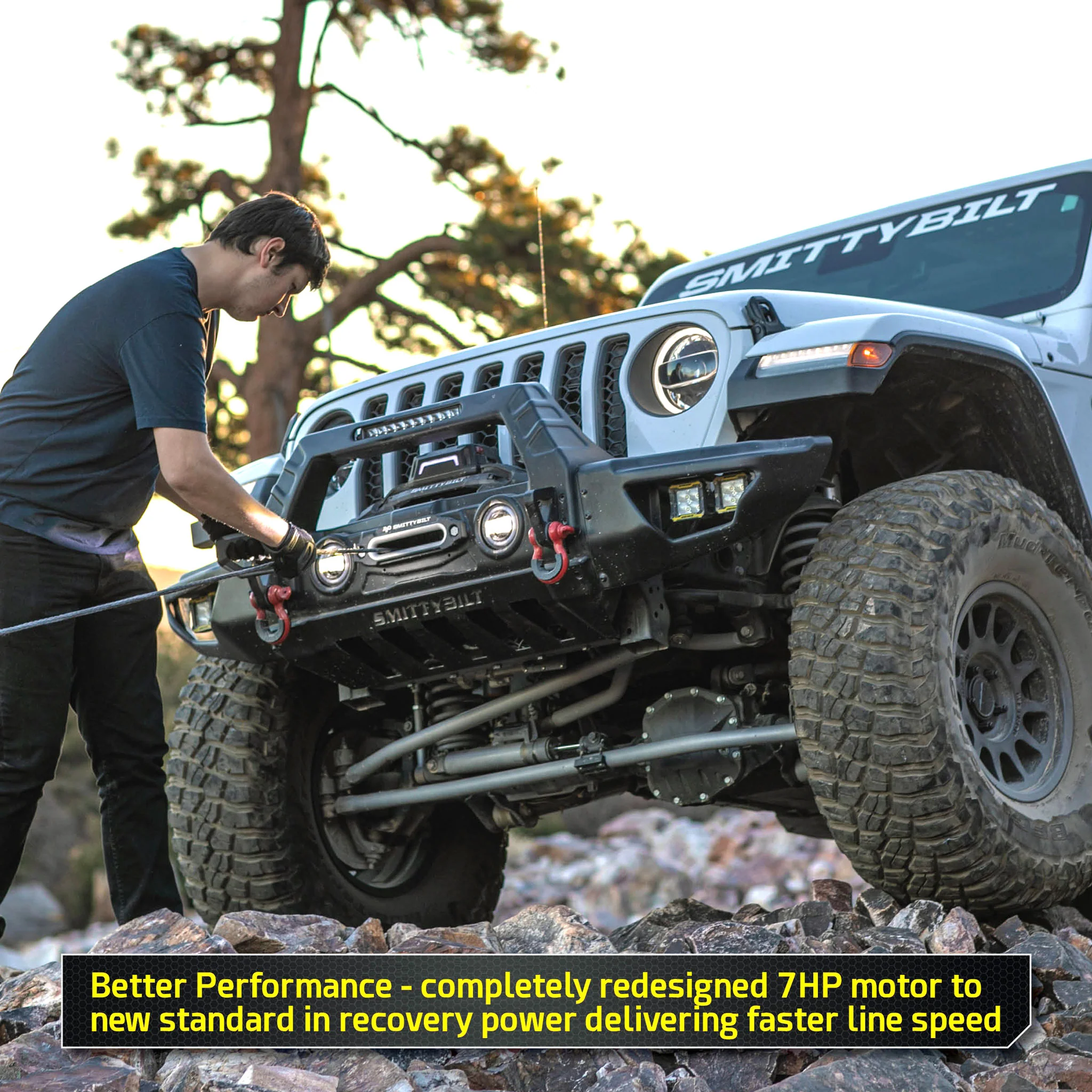

• 7HP series wound motor

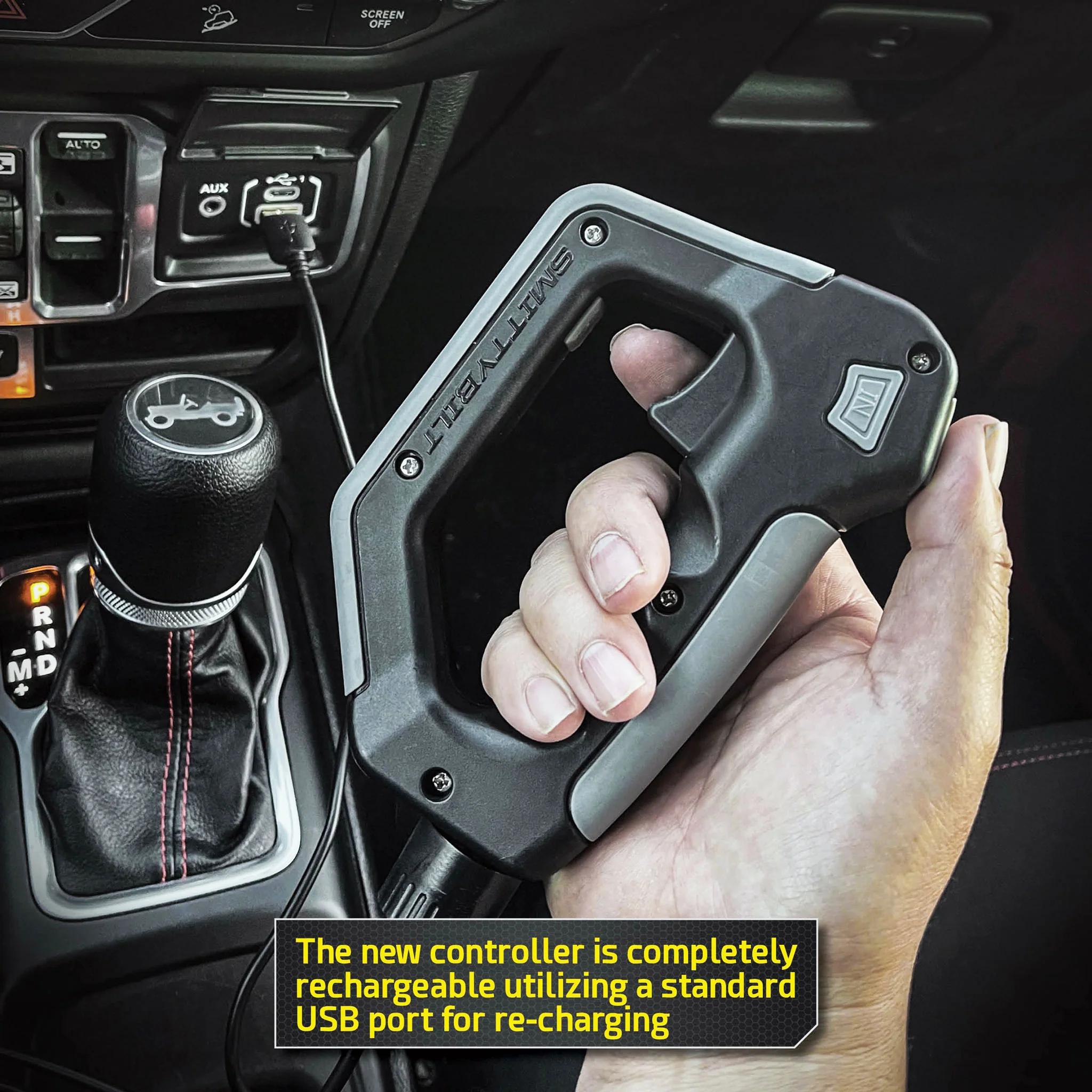

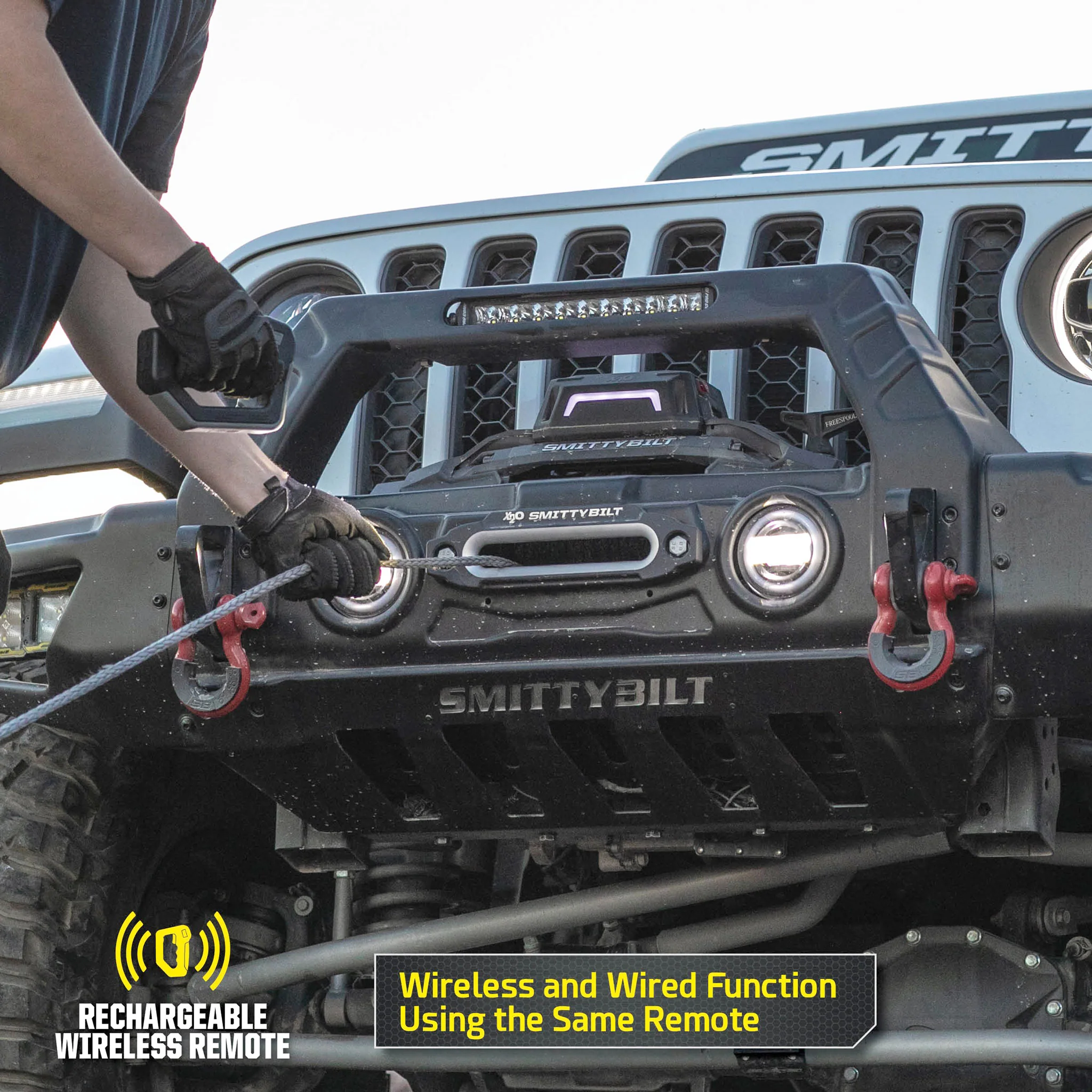

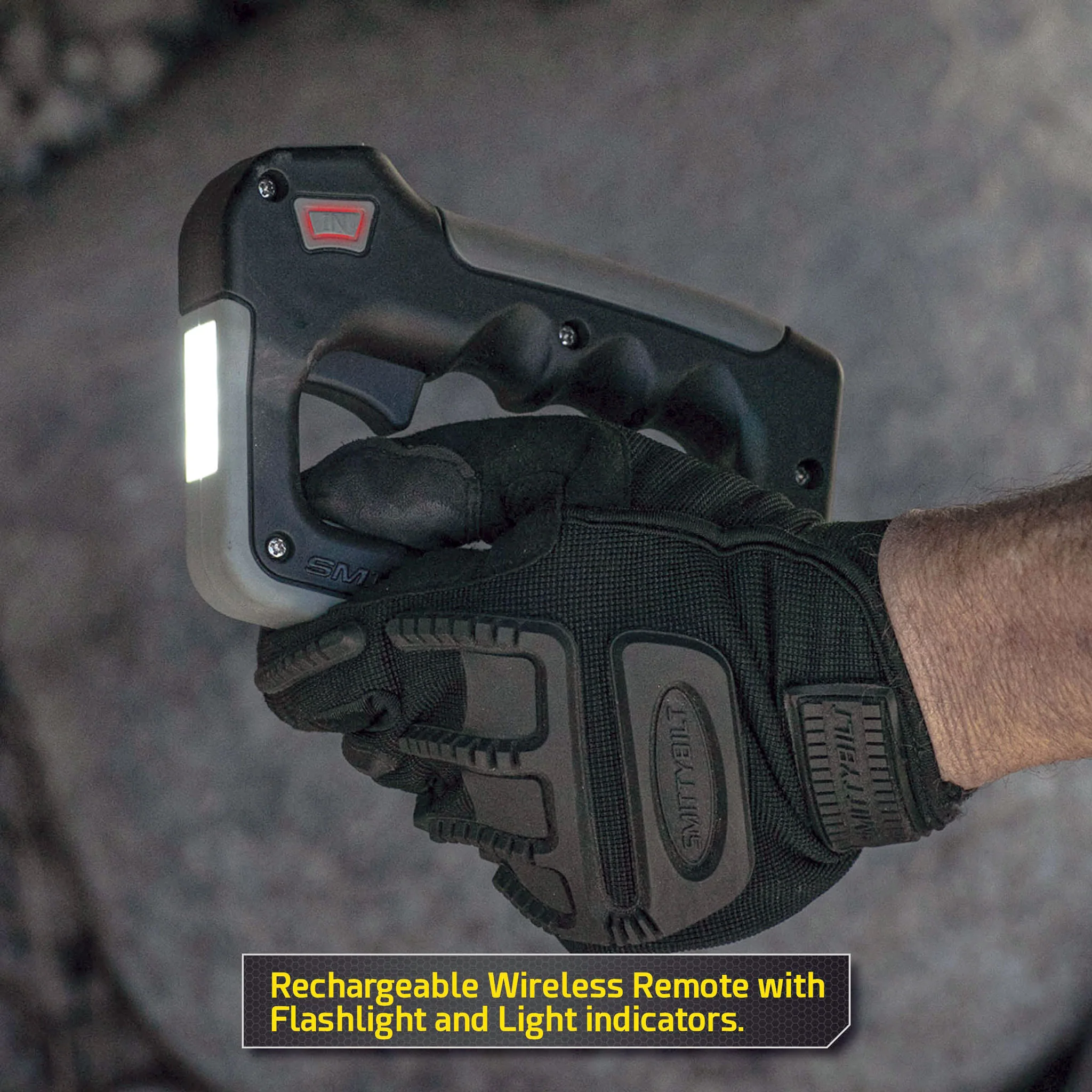

• Wireless remote with 10' charging/wired cord




Install Instructions

Part #: 98812
Alt PN: SB98812
GTIN: 631410154443
